Baku · Azerbaijan
Industrial and marine sites
Piers
Trestles
Piles
Steel structures

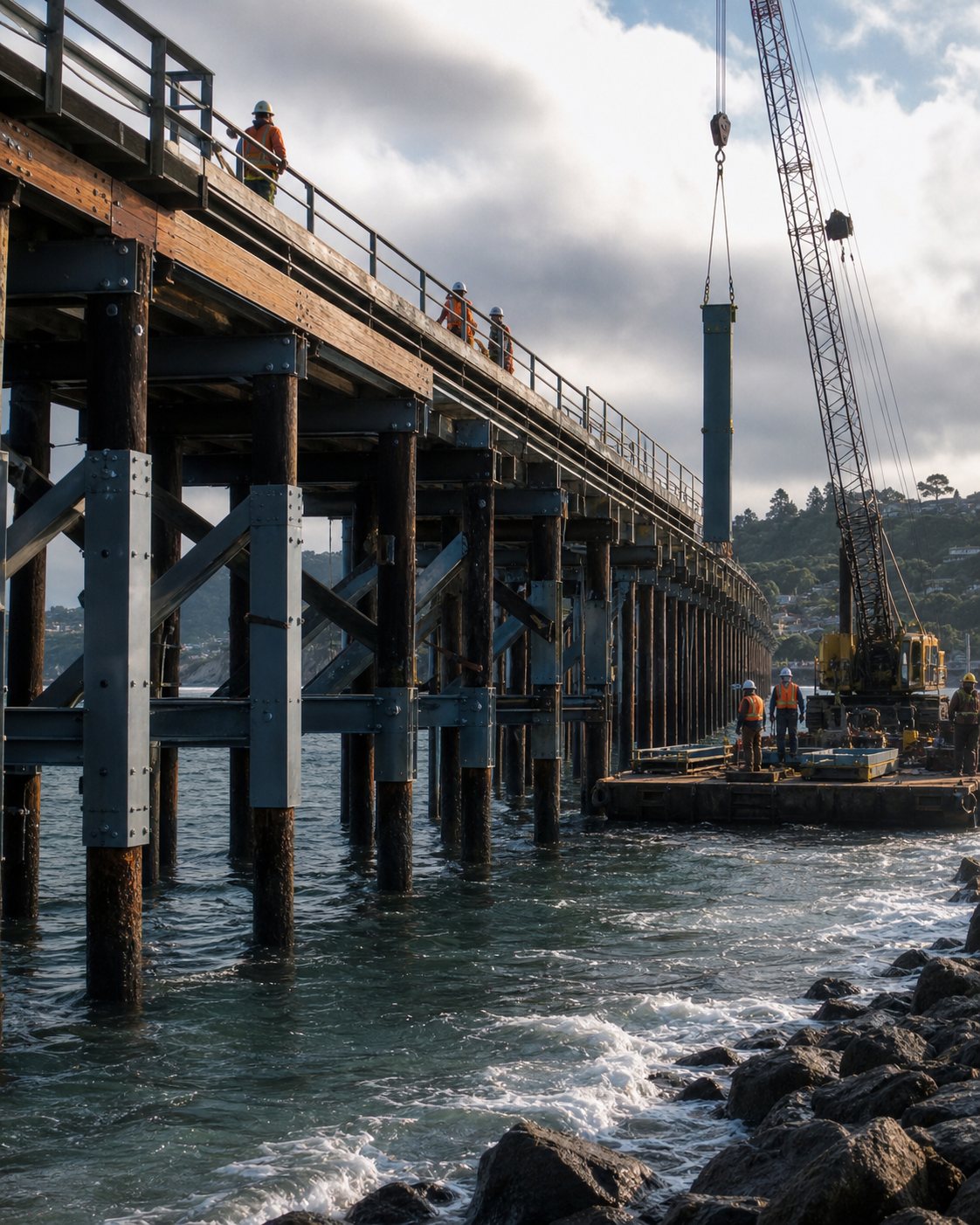

Inspection, strengthening and repair of structures on operating sites — piers, trestles, piles and steelwork.
Services
01
Technical inspection and audit
Assessing the actual condition of structures and identifying defects and risks.
02
Repair and rehabilitation design
Repair designs for piers and trestles: calculations and working drawings.
03
Pile and support strengthening
Designing and delivering rehabilitation and strengthening of load-bearing elements.
04

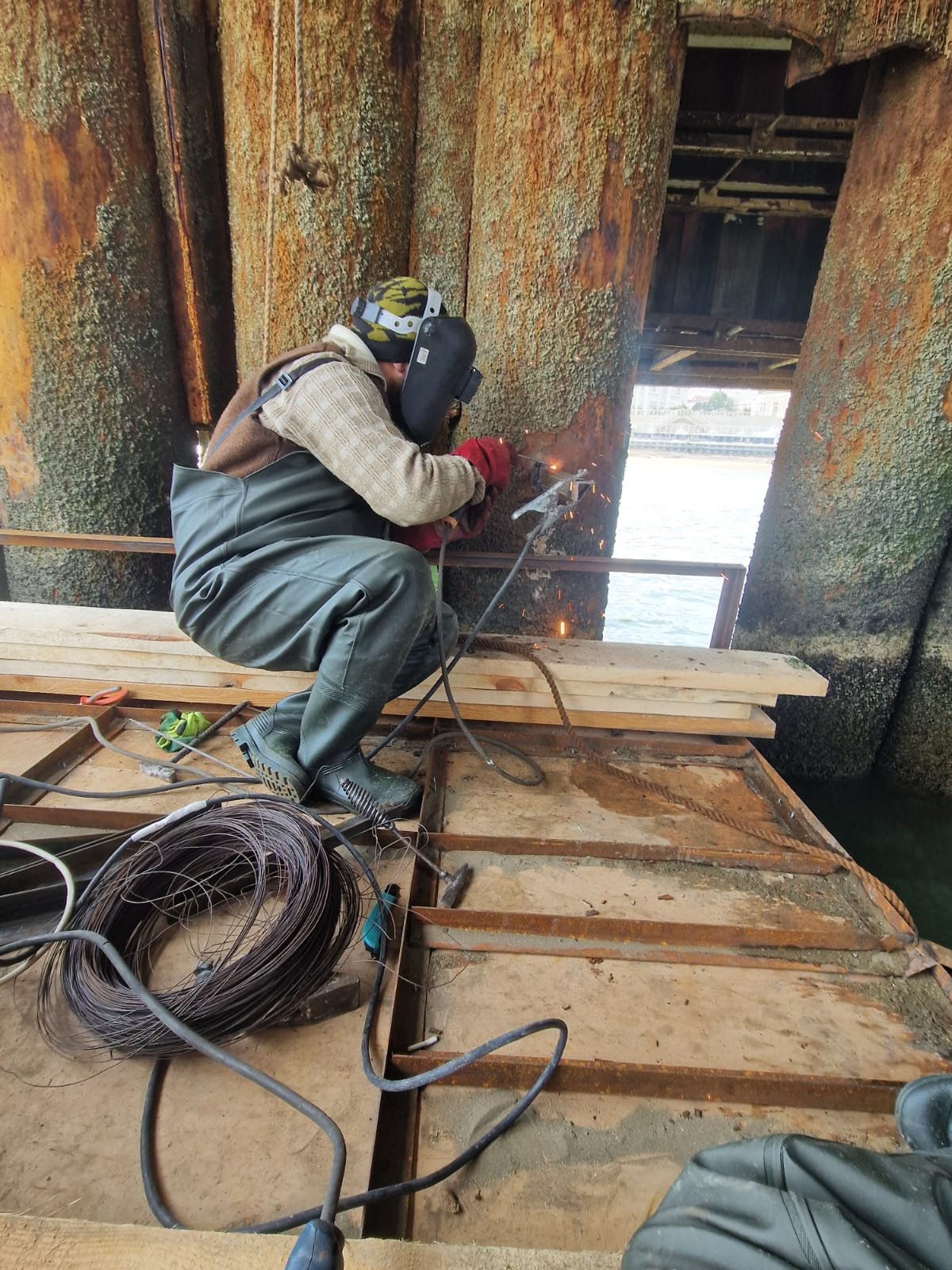

Steelwork repair
Replacing and strengthening corroded or damaged members.
05
Underwater works
Inspection and repair of underwater parts.
06
Supervision and documentation
Quality control, reports and as-built documentation.
Small-craft pier: technical inspection and strengthening design
On one section of the pier the load-bearing supports had partially collapsed. The 9.5 × 48.25 m section rests on three rows of steel piles, 550 mm in diameter and 12 m long.
Work carried out
• Measurement survey
• Review of the structural scheme and seabed relief
• Underwater inspection by a diving team
• Visual inspection of load-bearing structures from a boat
• Technical report
- Findings:
- Pile corrosion caused by the falling sea level
- Loss of connection between piles and the superstructure
- Seabed scour of more than 2 metres from storm waves

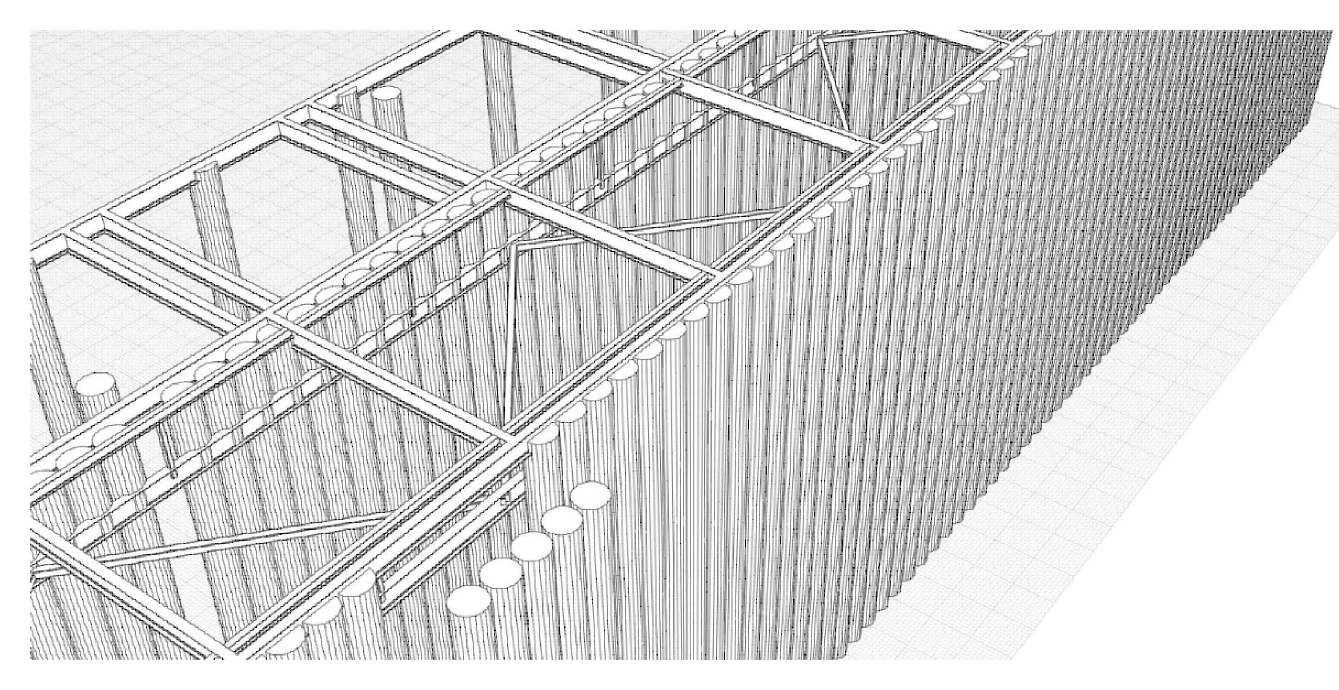

Strengthening solution
• Tying the piles together with No. 24 I-beams
• No. 18 I-beams under the deck slabs
• Diagonal bracing from 140×140×6 mm tubes
• Seabed protection with tetrapods or gravel-filled bags
- Client name and site location are withheld under the contract.
How we work on operating sites
01 · Inspection
Site visit, measurements, 3D scanning and photo documentation.
02 · Design
Calculations, repair solutions, working drawings and cost estimate.
03 · Construction
Organising the works and coordinating specialist crews.
04 · Control and handover
Quality control, as-built documentation and a final report.
Safety first
Strict adherence to safety requirements on operating sites.
Digital measurement
Actual condition from 3D scanning and precision instruments.
INDUSTRIAL AND MARINE
Examples of our work
24-month warranty
40% advance
After a site visit
We guarantee the work we deliver
The rest is paid as the work progresses
Timeline and cost are set once we have seen the site
